产品概述

APT32F110X系列

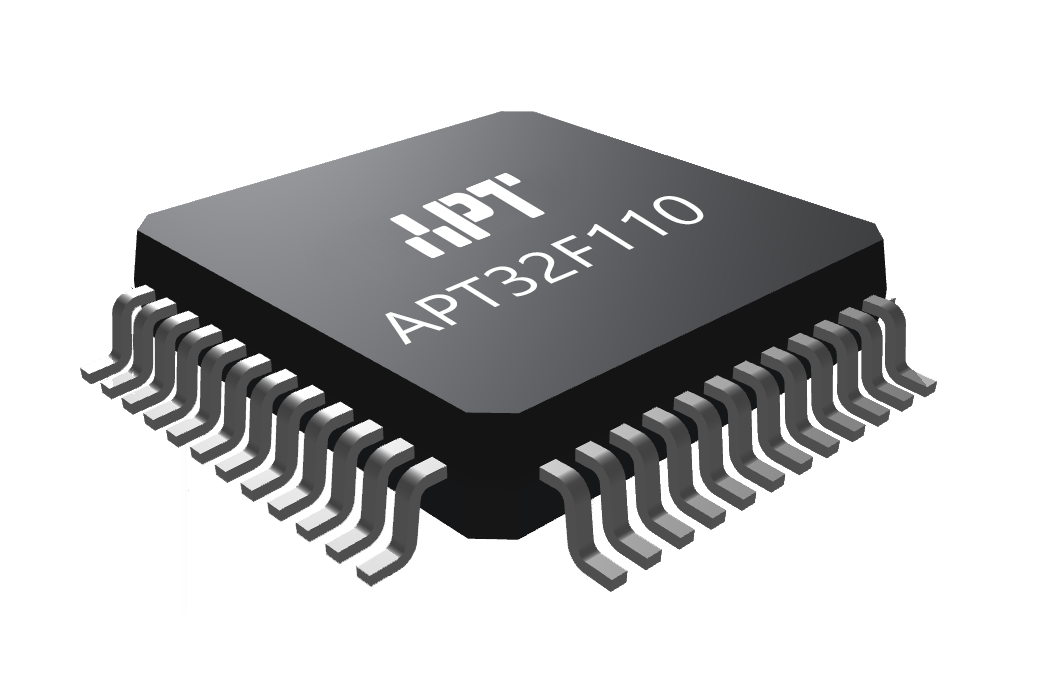

APT32F110由爱普特微电子推出的基于RISC-V CPU内核开发的32位高性能高可靠性单片机。 APT32F110系列单片机面向的应用为家电以及便携设备等。

产品型号表


APT32F1101系列


Part NO. Op.Volt Temp Freq Pin GPIO Flash RAM Dflash HWD DMA IWDT WWDT BT CNTA RTC LPT EPT GPTA GPTB UART USART IIC SPI SIO HSIO PWM ADC CMP Touch LED Driver Deep Sleep Shut Down PACKAGE
APT32F1101C8T6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 10uA 1.5uA LQFP48
APT32F1101C6T6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 10uA 1.5uA LQFP48
APT32F1101C8F6 1.8v~5.5v -40~85 48MHz 44 41 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 30ch 10comx8seg 10uA 1.5uA QFP44
APT32F1101C6F6 1.8v~5.5v -40~85 48MHz 44 41 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 30ch 10comx8seg 10uA 1.5uA QFP44
APT32F1101K8T6 1.8v~5.5v -40~85 48MHz 32 29 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 2 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 10uA 1.5uA LQFP32
APT32F1101K6T6 1.8v~5.5v -40~85 48MHz 32 29 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 2 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 10uA 1.5uA
LQFP32


APT32F1102系列


Part NO. Op.Volt Temp Freq Pin GPIO Flash RAM Dflash HWD DMA IWDT WWDT BT CNTA RTC LPT EPT GPTA GPTB UART USART IIC SPI HSIO PWM ADC Deep Sleep Shut Down PACKAGE
APT32F1102C8T6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 10 16bit,18ch 12bitx19ch 10uA 1.5uA LQFP48
APT32F1102C6T6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 10 16bit,18ch 12bitx19ch 10uA 1.5uA LQFP48
APT32F1102C8U6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 10 16bit,18ch 12bitx19ch 10uA 1.5uA QFN48
APT32F1102C6U6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 10 16bit,18ch 12bitx19ch 10uA 1.5uA QFN48
APT32F1102K8T6 1.8v~5.5v -40~85 48MHz 32 28 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 6 16bit,18ch 12bitx12ch 10uA 1.5uA LQFP32
APT32F1102K6T6 1.8v~5.5v -40~85 48MHz 32 28 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 6 16bit,18ch 12bitx12ch 10uA 1.5uA LQFP32
APT32F1102K8U6 1.8v~5.5v -40~85 48MHz 32 28 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 6 16bit,18ch 12bitx12ch 10uA 1.5uA QFN32
APT32F1102K6U6 1.8v~5.5v -40~85 48MHz 32 28 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 6 16bit,18ch 12bitx12ch 10uA 1.5uA QFN32


APT32F1103系列


Part NO. Op.Volt Temp Freq Pin GPIO Flash RAM Dflash HWD DMA IWDT WWDT BT CNTA RTC LPT EPT GPTA GPTB UART USART IIC SPI SIO HSIO PWM ADC CMP Touch LED Driver LCD Deep Sleep Shut Down PACKAGE
APT32F1103C8T6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 8comx26seg4comx30seg 10uA 1.5uA LQFP48
APT32F1103C6T6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 8comx26seg4comx30seg 10uA 1.5uA LQFP48
APT32F1103C8U6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 8comx26seg4comx30seg 10uA 1.5uA QFN48
APT32F1103C6U6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 32ch 10comx8seg 8comx26seg4comx30seg 10uA 1.5uA QFN48
APT32F1103C8F6 1.8v~5.5v -40~85 48MHz 44 41 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 30ch 10comx8seg 8comx24seg4comx29seg 10uA 1.5uA QFP44
APT32F1103C6F6 1.8v~5.5v -40~85 48MHz 44 41 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 30ch 10comx8seg 8comx24seg4comx29seg 10uA 1.5uA QFP44
APT32F1103K8T6 1.8v~5.5v -40~85 48MHz 32 29 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 8comx15seg4comx19seg 10uA 1.5uA LQFP32
APT32F1103K6T6 1.8v~5.5v -40~85 48MHz 32 29 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 8comx15seg4comx19seg 10uA 1.5uA LQFP32
APT32F1103K8U6 1.8v~5.5v -40~85 48MHz 32 29 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 8comx15seg4comx19seg 10uA 1.5uA QFN32
APT32F1103K6U6 1.8v~5.5v -40~85 48MHz 32 29 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 20ch 6comx8seg 8comx15seg4comx19seg 10uA 1.5uA QFN32


APT32F1104系列


Part NO. Op.Volt Temp Freq Pin GPIO Flash RAM Dflash HWD DMA IWDT WWDT BT CNTA RTC LPT EPT GPTA GPTB UART USART IIC SPI SIO HSIO PWM ADC CMP LCD Deep Sleep Shut Down PACKAGE
APT32F1104C8T6 1.8v~5.5v -40~85 48MHz 48 44 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 8comx26seg 4comx30seg 10uA 1.5uA LQFP48
APT32F1104C6T6 1.8v~5.5v -40~85 48MHz 48 44 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx19ch 2ch 8comx26seg 4comx30seg 10uA 1.5uA LQFP48
APT32F1104C8F6 1.8v~5.5v -40~85 48MHz 44 41 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 8comx24seg 4comx28seg 10uA 1.5uA QFP44
APT32F1104C6F6 1.8v~5.5v -40~85 48MHz 44 41 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 10 16bit,18ch 12bitx17ch 2ch 8comx24seg 4comx28seg 10uA 1.5uA QFP44
APT32F1104K8T6 1.8v~5.5v -40~85 48MHz 32 29 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 8comx15seg 4comx19seg 10uA 1.5uA LQFP32
APT32F1104K6T6 1.8v~5.5v -40~85 48MHz 32 29 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 8comx15seg 4comx19seg 10uA 1.5uA LQFP32
APT32F1104K8U6 1.8v~5.5v -40~85 48MHz 32 29 64k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 8comx15seg 4comx19seg 10uA 1.5uA QFN32
APT32F1104K6U6 1.8v~5.5v -40~85 48MHz 32 29 32k 8k+0.25k 2k 4ch 1 1 2 1 1 1 1 2 2 3 1 1 1 1 6 16bit,18ch 12bitx12ch 2ch 8comx15seg 4comx19seg 10uA 1.5uA QFN32
