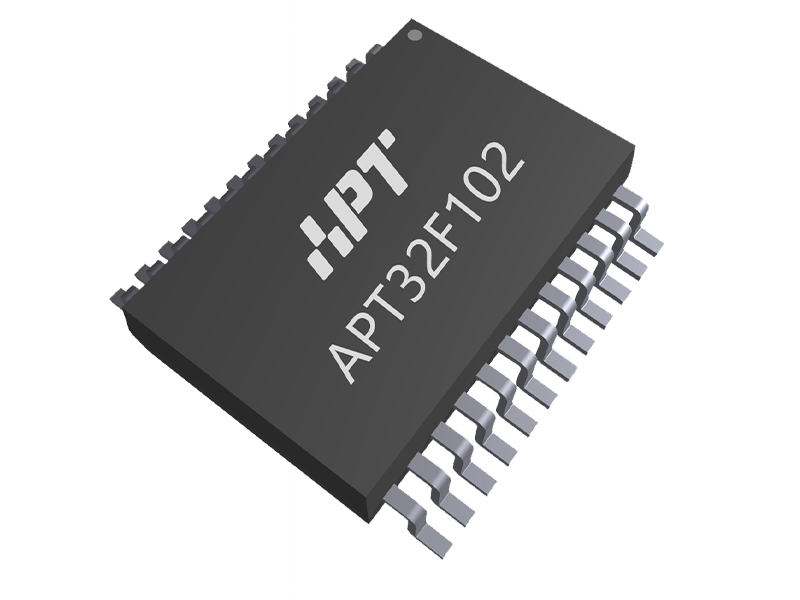

APT32F102是由爱普特微电子推出的基于RISC CPU内核开发的32位高性能高可靠性单片机。APT32F102单片机面向的应用为工业控制，触控家电，消费电子设备，可穿戴设备等应用。

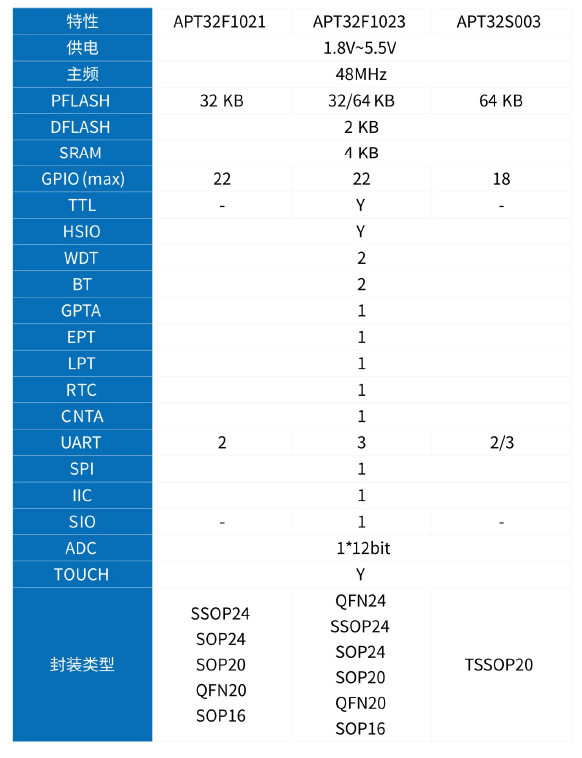

| Part NO. | Op.Volt | Temp | Freq | Pin | GPIO | HSIO | Flash | RAM | Dflash | IWDT | WWDT | BT | CNTA | RTC | LPT | EPT | GPT | UART | IIC | SPI | PWM | ADC | Touch | Deep Sleep | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APT32F1021F6U6 | 1.8v~5.5v | -40~85 | 48MHz | 20 | 18 | 4 | 32k | 4k | 2k | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 16bitx12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
| APT32F1021F6U8 | 1.8v~5.5v | -40~105 | 48MHz | 20 | 18 | 4 | 32k | 4k | 2k | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 16bitx12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
| APT32F1021E6M6 | 1.8v~5.5v | -40~85 | 48MHz | 16 | 14 | 4 | 32k | 4k | 2k | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 16bitx12ch | 12bitx12ch | 11ch | 5uA | SOP16 |
| APT32F1021E6M8 | 1.8v~5.5v | -40~105 | 48MHz | 16 | 14 | 4 | 32k | 4k | 2k | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 16bitx12ch | 12bitx12ch | 11ch | 5uA | SOP16 |
| Part NO. | Op.Volt | Temp | Freq | Pin | GPIO | HSIO | Flash | RAM | Dflash | HWD | IWDT | WWDT | BT | CNTA | RTC | LPT | EPT | GPT | UART | IIC | SPI | SIO | TTL | PWM | ADC | Touch | Deep Sleep | PACKAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| APT32F1023H8S6 | 1.8v~5.5v | -40~85 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | SSOP24 |
| APT32F1023H8S8 | 1.8v~5.5v | -40~105 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | SSOP24 |
| APT32F1023H8M6 | 1.8v~5.5v | -40~85 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | SOP24 |
| APT32F1023H8M8 | 1.8v~5.5v | -40~105 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | SOP24 |
| APT32F1023H8U6 | 1.8v~5.5v | -40~85 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | QFN24 |
| APT32F1023H8U8 | 1.8v~5.5v | -40~105 | 48MHz | 24 | 22 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 17ch | 5uA | QFN24 |
| APT32F1023F8M6 | 1.8v~5.5v | -40~85 | 48MHz | 20 | 18 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | SOP20 |
| APT32F1023F8M8 | 1.8v~5.5v | -40~105 | 48MHz | 20 | 18 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | SOP20 |
| APT32F1023F8U6 | 1.8v~5.5v | -40~85 | 48MHz | 20 | 18 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
| APT32F1023F8U8 | 1.8v~5.5v | -40~105 | 48MHz | 20 | 18 | 4 | 64k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
| APT32F1023F6U6 | 1.8v~5.5v | -40~85 | 48MHz | 20 | 18 | 4 | 32k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
| APT32F1023F6U8 | 1.8v~5.5v | -40~105 | 48MHz | 20 | 18 | 4 | 32k | 4k | 2k | √ | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | √ | 16bit,12ch | 12bitx16ch | 15ch | 5uA | QFN20 |
